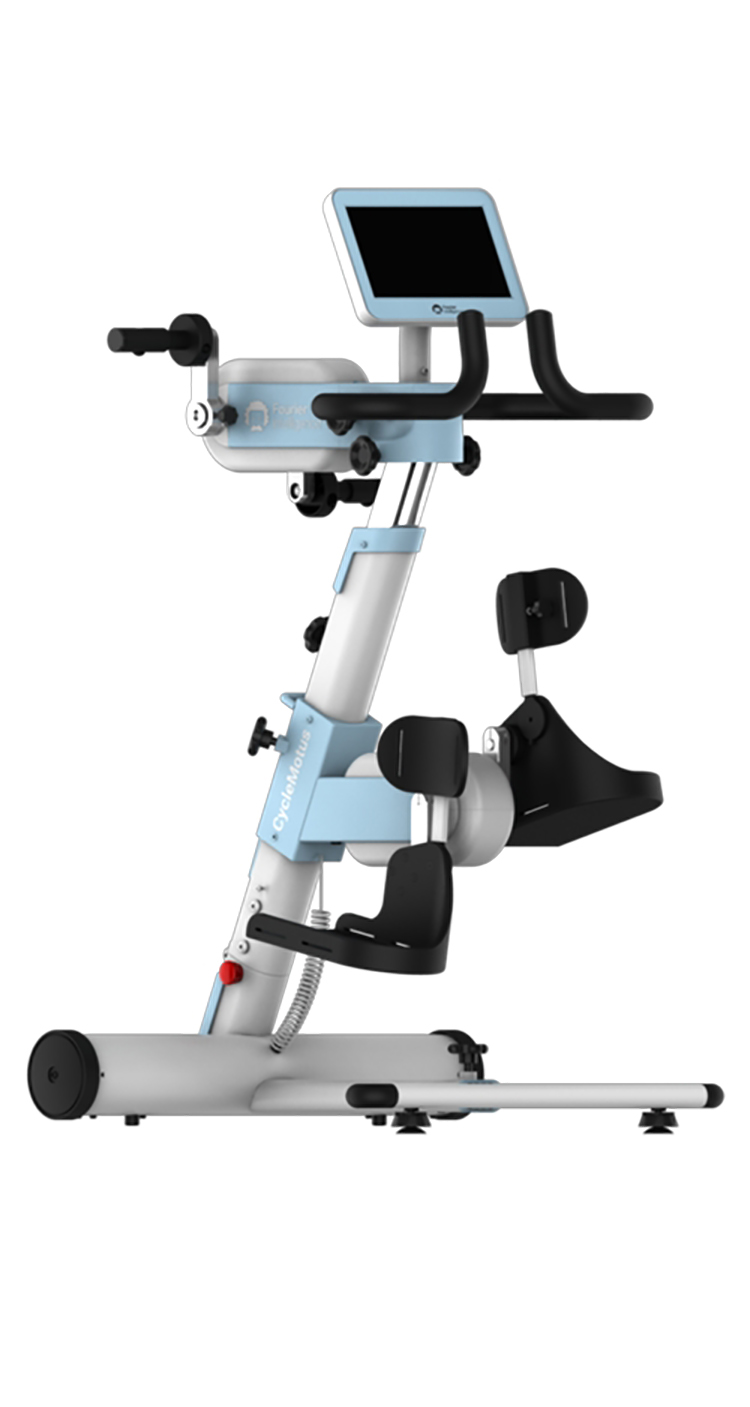

Hand and foot Rehab Training Robot

Intelligent upper and lower limb rehabilitation training system can apply two modes, one is rehabilitation mode, the other is training mode, so that patients can better train and rehabilitate.Selection of training difficulty scheme: The software is designed according to the needs of patients to solve different needs. Each training module can select the degree of difficulty, game type and other related settings.

AIDOCTOR offers efficient solutions and services with robotic rehabilitation & intelligent aid& healthcare device for movement therapy!

Inquiry now

Description

Quick Details

use:: medical treatment

Place of Origin:: Shanghai, China

Brand Name:: AI Docotor

Model Number:: ZYS-ZNSJ-006

Material:: Stainless steel

Color:: White

MOQ:: 1

Packing:: 1set/carton box,then wooden carton

Carton Size:: 50*50*40cm

Feature:: Upper and lower limb rehabilitation exercise

Advantage:: active and passive dynamic feedback

After-sales Service:: one-year free warranty and spare parts replacement

The weight of the:: 20KG

Custom service:: support

model	ZYS-ZNSJ-006
Material	Stainless steel
Advantage	Intelligent automation, active and passive dynamic feedback, biomechanics
After-sales Service	Lifelong online remote guidance operation and related training, one-year free warranty and spare parts replacement, irregular on-site inspection and testing
Keywords	Medical robot, robot, intelligent medical treatment, intelligent rehabilitation, lower limb rehabilitation, lower limb rehabilitation robot, intelligent lower limb rehabilitation, leg rehabilitation,
Feature	Upper and lower limb rehabilitation exercise

Features ：

Intelligent upper and lower limb rehabilitation training system can apply two modes, one is rehabilitation mode, the other is training mode, so that patients can better train and rehabilitate. Selection of training difficulty scheme: The software is designed according to the needs of patients to solve different needs. Each training module can select the degree of difficulty, game type and other related settings. Matting technology: Through matting technology, patients can see themselves on the screen, which can also increase the interest of patients in the training process.

There are two forms of treatment: 1. Using the latest computer graphics and image technology, patients are placed in a virtual environment, through matting technology, patients can see themselves on the screen or appear in the form of virtual images.Do various actions according to the changes and prompts of the scene in the screen to keep the scene mode in the screen continuing until the training goal is finally completed.
2. Before treatment, intelligent human motion capture technology can be used to identify and locate the patient's body, set training objectives in the software, specify the parts to be trained, establish exercise prescriptions, and automatically display the training data results in the clinical report after a period of exercise training. AC220V±10% 50Hz;
Input power: upper and lower limbs < 800 VA; Fuse: F1AL250V, F3AL250V; Timing range: 2 ~ 120min ± 1min; Speed display range: 0-99r/min ± 10%; Speed setting range: 0-60r/min ± 10%; Angle setting range: 0-330 ° ± 5; Resistance setting level: 1-20; Resistance torque: 0-20 Nm; \n Setting range of heart rate: 0-150 (set the number of stages to be 5 each time), accuracy: ± 5 times/min
