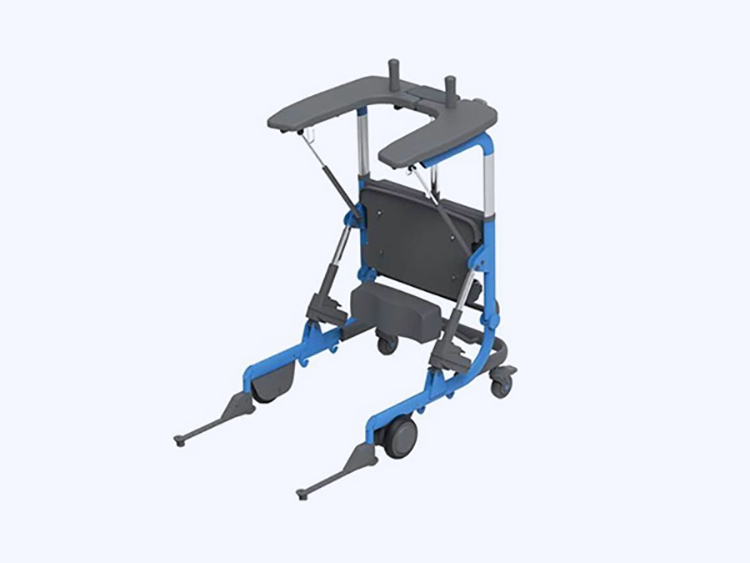

Standing Aid Robot

Rehabilitation Training of Electric Standing Walker,The electric standing Walker has three functions: walking training, standing training and body position transfer.

AIDOCTOR offers efficient solutions and services with robotic rehabilitation & intelligent aid& healthcare device for movement therapy!

Inquiry now

Description

Quick Details

use:: medical treatment

Place of Origin:: Shanghai, China

Brand Name:: AI Docotor

Model Number:: ZYS-ZNZL-016

Material:: Aluminum alloy + plastic + Oxford cloth

Color:: Grey + Blue

MOQ:: 1

Packing:: 1set/carton box,then wooden carton

Carton Size:: 85*80*40

Feature:: Assisted standing and walking

Advantage:: Intelligent feedback of lower limbs

After-sales Service:: one-year free warranty and spare parts replacement

The weight of the:: 35KG

Custom service:: support

model	ZYS-ZNZL-016
Material	Aluminum alloy + plastic + Oxford cloth
Advantage	Intelligent analysis, automatic braking, anti-fall and anti-fast forward
After-sales Service	Lifelong online remote guidance operation and related training, one-year free warranty and spare parts replacement, irregular on-site inspection and testing
Keywords	Astanding walking-aid robot, an intelligent rehabilitation station-aid instrument, a medical station-aid robot, an intelligent station-aid instrument, a station-walking assistant robot,
Feature	Assisted standing and walking

Keyword Guide:

Rehabilitation Training of Electric Standing Walker Description: The electric standing Walker has three functions: walking training, standing training and body position transfer.

Product introduction

The product integrates a desktop walking aid, a conveying lifting frame for the disabled and a standing frame, and can stand, sit and move; Intelligently assist the patient to walk, automatically control the speed, provide forward or uphill assistance and too fast speed & downhill resistance; The balance force is stable and not easy to fall down, the grip sensor is safe to prevent the risk of rollover, and the rear wheel brake of the unilateral grip can ensure emergency braking;Long battery life, suitable for various environments and road conditions, adjustable body height, basket can carry goods, but also can record travel data for doctors' reference and analysis; Integrates a desktop walking aid, a conveying lifting frame for the disabled and a standing frame; The product is lightweight, one-button folding, precise induction and super algorithm application is the first domestic moped, and is also the world's leading.

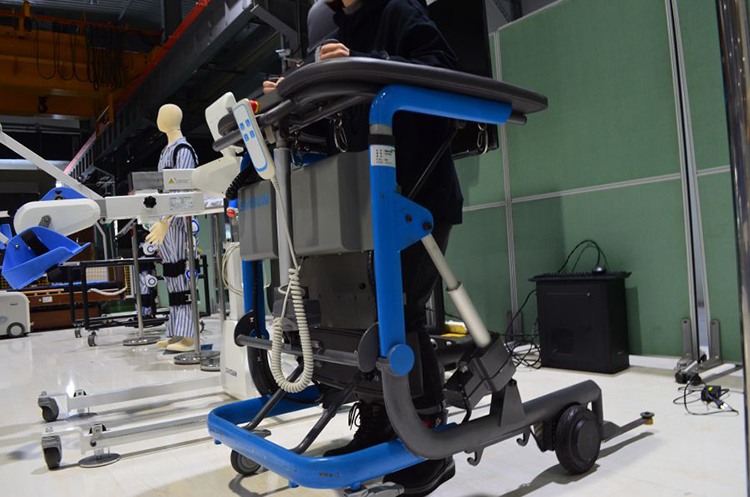

It is suitable for assisted walking or standing training of patients with mobility disorders, or for transport and walking function compensation of patients with mobility disorders. The electric standing Walker has three functions of walking training, standing training and body position transfer. The liftable suspension bracket is hung with a load-bearing sling for lifting the body of a user, and is provided with a handrail for the user to support.During walking training, the lower limb bearing of the user in walking is reduced, the walking speed is set, the walking safety of the user is improved, and the normal walking gait is guided and trained. After the standing pedal is fixed, the product becomes an electric shifting machine, which has the functions of electric height lifting, eliminating traction resistance and so on, reducing the physical effort of medical staff, improving work efficiency and improving user comfort.

Product features:

1. Auxiliary Stand Up Through the electric control system, the patient is assisted to change from sitting posture to standing posture, which is suitable for patients with certain upper limb muscle strength and weak lower limb muscle strength, who need auxiliary support when standing up.

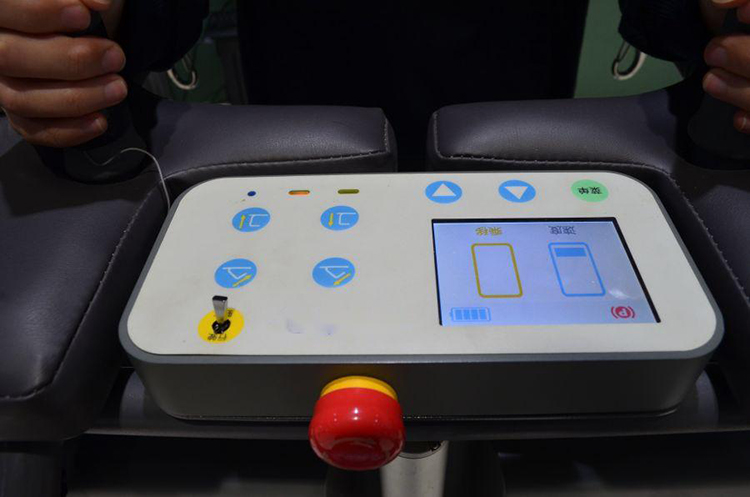

2. Intelligent walking and braking system. The user holds the handlebar with both hands and pushes the Walker to run, and the running speed change with the user's walking speed. If the user leaves the handlebar with either hand, the vehicle will stop immediately.
3. Intelligent Security System
Built-in intelligent safety algorithm, can judge the user's fall trend, emergency parking, with the help of protective suspenders, to prevent falls. The precise central calculation of the product ensures that it will not overturn in the process of use and ensures the safety of users.

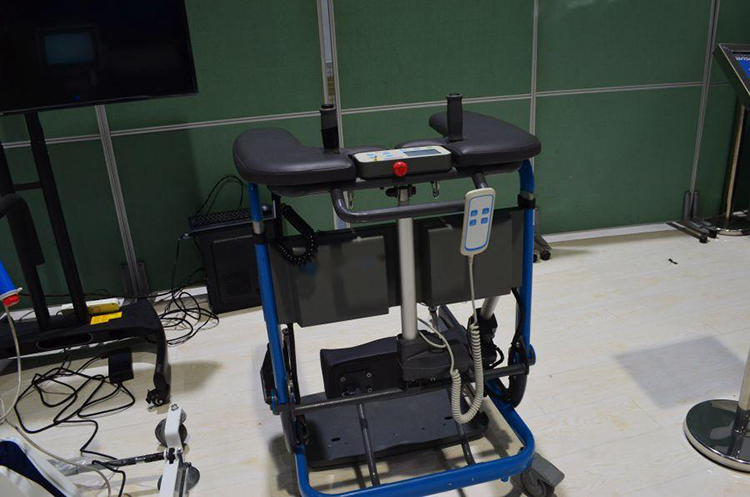

4. Electric standing frame Standardisation of the standing posture is achieved by the electric steering system and provides support for the user during standing exercises. The height of the support table is adjustable.
5: Standing transportation and transfer The foot pedal is adopted, so that when the patient stands, the patient can be moved and transported by the nursing staff, and the foot pedal can also be in friendly docking with the toilet and the like.
6: Walking assistance It is suitable for people who have autonomous walking ability, weak weight-bearing ability and need certain auxiliary support when walking. Assist travel by providing assistance and protection during walking.
7. The user can adjust the maximum running speed according to his own actual situation (when the running speed of the car exceeds the set speed, it will automatically brake and stop immediately); Adjust the amount of sustained resistance or assist provided by the cart on level ground.
8. Ergonomically designed accessories The widened weight reduction sling has a special design, which is easy to wear and does not produce a sense of restraint when bearing weight.
Scope of application:
1. Nurses provide body position transfer for people who can not move on their own.
2. Walking training for people with walking dysfunction
Parameter drawing!
Support table size: 570mm w670mm
Support table height adjustment: 900mm-1200mm
Traveling speed Maximum speed 0.89m/s Power supply 0.01-0.25Nm
Maximum load of 100 kg on the flat ground of running slope (static state)
Charging time 2 hours Maximum travel distance 10 km
